Categorieën: LABEL BARCODEPRINTER, CAB labelprinter in 2 kleuren, Nieuw!, Deskopt-labelprinters

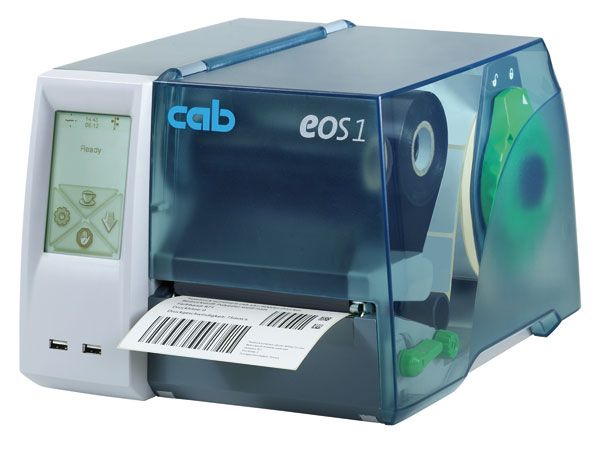

DE EOS1 is de compactste uitvoering en geschikt voor rollen etiketten met een maximale diameter van 155 mm. De EOS4 is geschikt voor rollen van 210 mm in diameter. Verder zijn alle technische gegevens van deze printers identiek.
Onder het LCD scherm bevinden zich twee USB poorten voor het aansluiten van bijvoorbeeld een toetsenbord, scanner of USB stick. Het grote touchscreen LCD scherm is eenvoudig bedienbaar.
In stand-alone modus kan label-data middels een toetsenbord worden ingevoerd zonder tussenkomst van een PC. Dankzij de high-tech electronica, de intelligente printkop en efficiënte voeding is de EOS-Serie bijzonder energiezuinig en milieuvriendelijk. De behuizing is gemaakt van high-class ABS kunststof met doorzichtig deksel en zijn perfect op elkaar afgestemd in hun vorm en functie. Cablabel R2+ labelsoftware ondersteunt alle functies van de printer optimaal.
| Label printer | EOS1 / EOS4 | ||
|---|---|---|---|
| Printhead | |||
| Printing method | Thermal transfer / thermal direct | ||
| Print resolution dpi | 203 / 300 | ||
| Print width up to mm | 108 / 105,7 | ||
| Print speed mm/s | 30, 40, 50, 75, 100, 125 | ||
| Material1) on rolls and fanfolded | |||
| Thickness mm | Width mm | Height mm | |
| Labels: Paper, cardboard, textiles, plastics such as PET, PE, PP, PVC, PU, acrylate, PI | 0,055 - 0,7 | single lan10 - 116 multi lan 5 - 116 |
6 - 1000 |
| Labels: carrierpaper 60 - 110 g/m2 | 0,055 - 0,10 | 25 - 120 | continuous |
| Continuous material: cardboard 80 - 180 g/m2 | 0,10 - 0,20 | 6 - 120 | 10 - 1000 |
| Continuous material: plastic film PVC | 0,30 | 6 - 60 | 10 - 1000 |
| Continuous material: flat pressed tubes | 0,40 - 0,70 | 5 - 85 | 10 - 1000 |
| Media roll | core Ø mm | EOS1 | EOS4 |
| Total Ø mm | 38 /40 | 155 | 210 |
| Total Ø mm | 76 | 152,4 | 203,2 |
| Winding direction | outside or inside only outside during cutting |
||
| Ribbon | |||
| Ink | outside or inside | ||
| Roll diameter up to mm | 72 | ||
| Core diameter mm | 25,4 | ||
| Ribbon length variabel up to m | 360 | ||
| Width mm | 50 - 114 | ||
| Printer dimensions | EOS1 | EOS4 | |
| Height x Depth x Width mm | 189 x 322 x 253 | 245 x 412 x 264 | |
| Weight kg | 4 | 5 | |
| Label sensor | |||
| Gap sensor for leading edge of the label or punching marks and end of material | |||
| Reflective sensor from the bottom for printing marks | |||
| Distance from the center to the left mm | 0 - 58 | ||
| Electronics | |||
| Prozessor high speed 32 Bit clock rate MHz | 400 | ||
| RAM MB | 64 | ||
| Memory IFFS MB Flash | 16 | ||
| Battery buffer for real-time clock with printout of time and date Data storage on shut-down | |||
| Acoustic signal in case of error | |||
| Interfaces | |||
| RS232C 1.200 up to 230.400 Baud/8Bit |  |
 |
|
| USB 2.0 full speed slave for PC connection |  |
||
| Ethernet 10 / 100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP |
|
||
| WLAN USB Stick 54 Mbps | |
||
| Nano Bluetooth USB Adapter V2.1 | |
||
| USB Master for keyboard, scanner, memory stick other service key 1 x on the back side connection up to 500 mA 2 x below the operation panel connection up to 100 mA |
|
||
| Operation panel | |||
| Touchscreen display 160 x 255 pixels with backlight | |||
| Diagonal measurement mm | 96 | ||
| Operating functions: Pause, Feed, Cancel, Menu, Enter, numeric pad | |||
| Cutter | |||
| Cutting length from mm | 10 | ||
| Cuts/min. up to | 200 | ||
| Monitoring | cutter pivoted, final position not reached | ||
| Label dispensing function only EOS4 | |||
| Label height mm | 20 - 100 | ||
| Printing and despensing | with push button on request automatically after removal of the label |
||
| Monitoring | gap sensor, label in despensing position | ||
| Operating data | |||
| Power supply | 100 – 240 V ~ 50 / 60 Hz, PFC | ||
| Energy consumption | power saving mode 1,8 W / typic 45 W / max. 100 W | ||
| Temperature / Humidity Operation: | + 5 – 40°C / 10 – 85% not condensing | ||
| Temperature / Humidity Storage: | + 0 – 60°C / 20 – 80% not condensing | ||
| Temperature / Humidity Transport: | – 25 – 60°C / 20 – 80% not condensing | ||
| Approvals | CE, FCC class A, CB, CCC, UL | ||
| Manufacturer | CAB |
|---|
