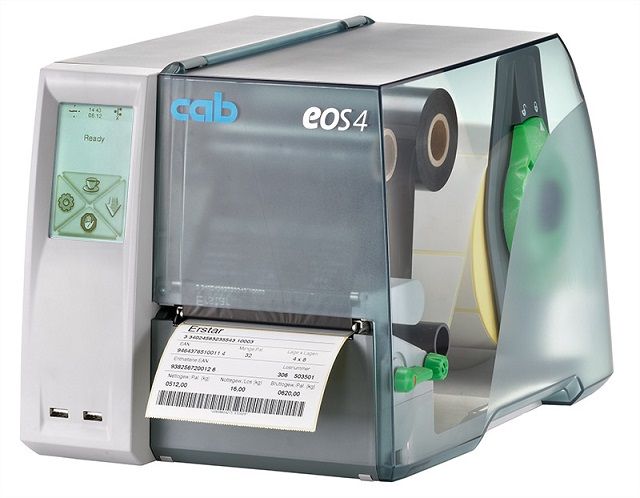

CAB EOS4 labelprinter


Vanaf
€809,00 €978,89
Product Naam prijs Aantal
5965103
CAB EOS4, direct thermal, thermal transfer, 200 dpi, center alligned base model with tear-off edge, interfaces: USB, network interface (Ethernet), parallel incl. manufacturer's labeling software 12 Maanden
€809,00 €978,89
voorraad
5965104
CAB EOS4, direct thermal, thermal transfer, 300 dpi, center alligned base model with tear-off edge, interfaces: USB, network interface (Ethernet), parallel incl. manufacturer's labeling software 12 Maanden
€869,00 €1.051,49
voorraad

The new EOS4 series combines all functions of a solid label printer with highest ease of operation.

standard Standard      Option 1.1 1.2 1.3 1.4
Label printerEOS1EOS4EOS1 mobileEOS4 mobile
Print head
Print method Thermal transfer / Thermal direct
Print resolution dpi 203 300 203 300 300 300
Print width up to mm 108 105,7 108 105,7 105,7 105,7
Print speed mm/s 30, 40, 50, 75, 100, 125
Material 1)
Labels – continuous material Paper, cardboard, textile, plastics such as PET, PE, PP, PVC, PU, acrylate, PI
          on rolls standard standard standard standard
          fanfolded - -
Thickness mm / Weight g/m2 0,055 – 0,7 / 60 – 240
Width lables mm single lane: 10 –116, multi lane: 5 –116
Width liner mm 25 –120
Width continuous material mm 5 –120
Width flat pressed tubesmm 5 - 85
Label height without back-feed mm 5 - 1000
Media roll outside diameter up to mm 152 203 152 203
Media roll core diameter mm 38 – 76
Media roll winding Outside or inside, when cutting preferably outside
Ribbon
Ink Outside or inside
Roll diameter up to mm 72
Core diameter mm 25,4
Ribbon length up to m 360
Widthmm 50 –114
Dimensions
Height x Depth x Width mm 189 x 322 x 253 245 x 412 x 264 189 x 322 x 253 245 x 412 x 264
Weight kg 4 5 4 5
Label sensor
Gap sensor For leading edge or punching marks and end of material
Reflective sensor from the bottom For print marks
Distance from the center to the left mm 0 - 58
Electronics
Processor High Speed 32 Bit clock rate MHz 400
RAM MB 64
Memory IFFS MB Flash 16
Battery buffer for real time clock , printout of time and date, data storage on shut-down standard
Warning signal: acoustic signal in case of error standard
Interface
USB 2.0 full speed device for PC connection standard
Ethernet 10/100 Base T, LPD, RawIP-Printing, ftp-Printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, Zeroconf, mDNS, SOAP standard
Periphery connection standard
2 x USB Host on operation panel, connection up to 100 mA for memory stick, service key, WLAN or bluetooth standard
1 x USB Host on the back, connection up to 500 mA for keyboard, scanner, WLAN or bluetooth standard
Operation panel
Display Touchscreen 160 x 255 pixel with back light
Screen diagonals mm 96
Operating data
Power supply 100 – 240 VAC, 50/60 Hz 16,5 –25 VDC
Power consumption Energy saving mode 1,8 W/typical 45 W/max. 100 W
Temperature/humidity operation: +5 – 40°C/10 – 85 %, not condensing
Temperature/humidity stock: +0 – 60°C/20 – 80 %, not condensing
Temperature/humidity transport: -25 – 60°C/20 – 80 %, not condensing
Approvals CE, FCC class A, CB, CCC, UL




Manufacturer CAB
