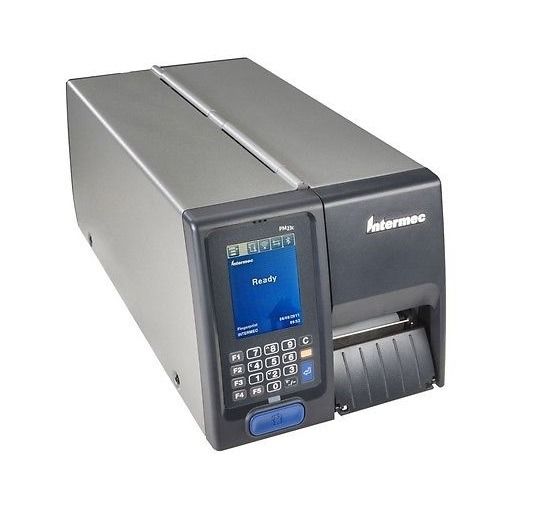

Intermec PM23C mid-range labelprinter

Product code : BYPOS-2943


  • Voor 15:30 PM Bestellen volgende werkdag in huis!
  • Snelle Leveringen!
  • uitgebreide betalings mogelijkheden!
  • Technische ondersteuning bij de installatie!

Vanaf €1.235,00 €1.494,35

Gegroepeerde productitems
Product Naam Prijs Aantal Acties

PM23CA0110000202
Honeywell PM23c, 8 dots/mm (203 dpi), ZPL, IPL, USB, RS232, Ethernet label printer , midrange printer, thermal transfer, 8 dots/mm (203 dpi), mediabreedte (max): 68mm, printbreedte (max.): 56mm, diameter rol (max.): 152,4mm, snelheid(max): 300 mm/sec., USB, RS232, Ethernet, emulatie, ZPL, IPL, RAM: 128 MB, Flash: 128 MB, incl.: kabel (USB), netsnoer (EU) 12 Maanden Speciaal artikel: Retourneren en annuleren niet mogelijk!
€1.257,00 €1.520,97
voorraad

PM23CA0100021212
Honeywell PM23c, Long Door, 8 dots/mm (203 dpi), rewind, RTC, ZPL, IPL, USB, RS232, Ethernet label printer , midrange printer, direct thermisch, 8 dots/mm (203 dpi), mediabreedte (max): 68mm, printbreedte (max.): 56mm, diameter rol (max.): 152,4mm, snelheid(max): 300 mm/sec., USB, RS232, Ethernet, emulatie, ZPL, IPL, RAM: 128 MB, Flash: 128 MB, rewinder, real time clock, incl.: kabel (USB), netsnoer (EU) 12 Maanden Speciaal artikel: Retourneren en annuleren niet mogelijk!
€1.534,00 €1.856,14
voorraad

PM23CA1100000202
Honeywell PM23c, Long Door, 8 dots/mm (203 dpi), disp., ZPL, IPL, USB, RS232, Ethernet label printer , midrange printer, thermal transfer, 8 dots/mm (203 dpi), mediabreedte (max): 68mm, printbreedte (max.): 56mm, diameter rol (max.): 152,4mm, snelheid(max): 300 mm/sec., USB, RS232, Ethernet, emulatie, ZPL, IPL, RAM: 128 MB, Flash: 128 MB, display (touch screen), incl.: kabel (USB), netsnoer (EU) 12 Maanden *** Special article: no cancellation or return possible! ***
€1.235,00 €1.494,35
voorraad

PM23CA1100021212
Honeywell PM23c, Long Door, 8 dots/mm (203 dpi), rewind, LTS, disp., ZPL, IPL, USB, RS232, Ethernet label printer , midrange printer, direct thermisch, 8 dots/mm (203 dpi), mediabreedte (max): 68mm, printbreedte (max.): 56mm, diameter rol (max.): 152,4mm, snelheid(max): 300 mm/sec., USB, RS232, Ethernet, emulatie, ZPL, IPL, RAM: 128 MB, Flash: 128 MB, rewinder, Label Taken Sensor, display (touch screen), incl.: kabel (USB), netsnoer (EU) 12 Maanden *** Special article: no cancellation or return possible! ***
€1.540,00 €1.863,40
voorraad

De PM23c mid-range industriële printer voorzien van een twee-inch printbreedte en een compact, ideaal voor veeleisende toepassingen in het transport, productie, retail, distributiecentrum en warehouse-omgevingen.
Ready - Snel te implementeren, in elke omgeving.
• Grote, kleur, meertalig, tamper-proof touchscreen, of pictogram gebruikersinterface
• "No-touch"-configuratie-mogelijkheden, zodat u de printer instellen terwijl het nog in de doos
• Snelle en eenvoudige vervanging van de printkop, geen gereedschap nodig
• De enige CCX-en WiFi-gecertificeerde vaste printer met standaard IPv6 implementatie

Environment

Operating Temperature: +5°C to +40°C (+41°F to +104°F)
Storage Temperature: -20°C to +70°C (-4°F to +152°F)
Humidity: 20 to 80% non-condensing

Interfaces

User Interfaces:
Color Touch  UI
Icon UI
User Itnerface Languages:
On Color Touch LCD and Web Interface:
English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese
Standard:
•Ethernet 10/100 Mbps
•RS-232, up to 115.2 kB/s
•Supported Serial Protocols:
   •Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS
   •IPL: XON/XOFF, Intermec Std. Protocol
•USB 2.0
•USB Host (X1 on PM23c)
Optional:
•Parallel IEEE 1284
•Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
•Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop
•Dual USB Host
Wireless:
•IEEE 802.11 b/g/n + Bluetooth
•Wi-Fi Certified, CCX (Cisco®) version 4 Certified
•Static WEP (64 bit and 128 bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (TKIP/CCKM Personal and Enterprise, WPA2 (AES-CCMP/CCKM Personal and Enterprise)
•Multiple industrial antenna options for maximized coverage
Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP – (private enterprise MIB included), SMTP
•Supports IPv4 and IPv6
•"No-touch" configuration capability through embedded RFID chip
Graphics:
Supports PCX, PNG, GIF and BMP file formats.
Other formats supported with Label Generation Tools.
Fonts:
•Monotype font engine
•Non-Latin fonts available through WTLE

Memory

SDRAM: 128MB
Flash ROM: 128MB
Memory/Storage Extensions: Multi-GB USB memory device (FAT16/FAT32)

Physical Characteristics

Height:
PM23c: 181 mm (7.13 in)
PM23c with Dome Door: 244.87 mm (9.64 in)
PM23c with Bag Tag Door: 207 mm (8.15 in)
Length:
PM23c: 431.84 mm (17 in)
PM23c with Dome Door: 500.22 mm (19.69 in)
PM23c with Bag Tag Door: 431.84 mm (17 in)
Width:
PM23c: 205.5 mm (8.09 in)
PM23c with Dome Door: 205.5 mm (8.09 in)
PM23c with Bag Tag Door: 205.5 mm (8.09 in)
Weight: 9.5 Kg (21 lb)

Power

AC Voltage: 100 to 240 VAC, 45 to 65Hz
PFC Regulation: IEC320/C14
Power Consumption: Standby 9W; Peak 300W

Print Specifications

Max Width:
Max. Width at 203dpi: 56 mm (2.2 in)
Max. Width at 300 dpi: 56 mm (2.2 in)
Max. Width at 406 dpi: 64 mm (2.5 in)
Print Speed:
At 203/300 dpi: 100-300 mm/s (4-12 ips)
At 406 dpi: 100-250 mm/s (4-10 ips)
Resolution:
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 406 dpi: 16 dots/mm

Media Type: Labels and Tags, Linerless and Linered media
Max Label Width:
Max/Min Width: 68.6mm/2.7 in (19.05mm/0.75in)
Style: Roll-fed or fanfold
Sensing: Gap, notch, black mark, continuous
Label Roll Max Diameter: 213 mm (8.38 in)
Label Roll Core: 38-76 mm (1.5-3 in)

Media Type: Ribbons
Label Roll Max Diameter: 61 mm (2.40 in), 229 m
Label Roll Core: Core ID: 25 mm (1 in)
Media Type: Wax, mid-range, resin

Media Type: RFID
RFID Standards and Frequencies:
18000-6C / EPC Class 1 Generation 2 865-928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.

Supported Bar Code Symbologies

All major 1D and 2D symbologies are supported.

Software

Printer Command Languages:
•IPL, DP, ZSim (ZPL), DSim (DPL)
•XML enabled for SAP® AII and Oracle® WMS

Applications / Drivers:
•InterDriver™ Windows printer driver
•Intermec Certified Device Types for SAP®
•Intermec label design and print package

Smart Printing Languages:
•Intermec C# for Printers
•Smart Printing Developer Resource Kit
•Write apps with .NET-compatible development environments
•Intermec Fingerprint
•Use Intermec Fingerprint ApplicationBuilder (IFAB)

Manufacturer intermec
