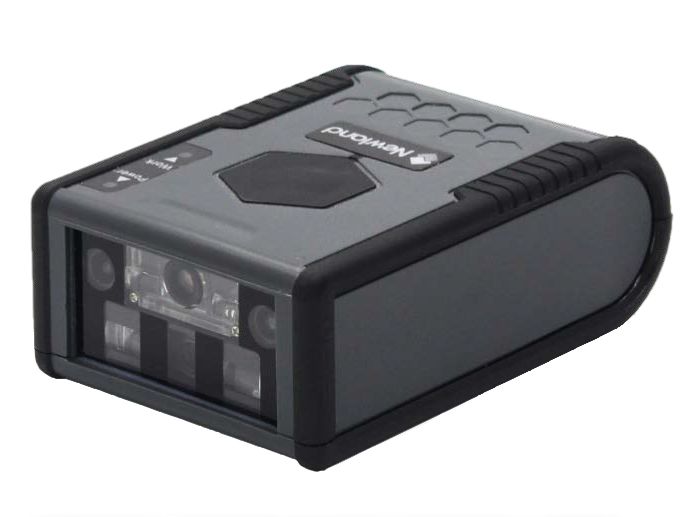

Newland FM50 Pike 2D Fixed mount
Product code :
BYPOS-50039
- Voor 15:30 PM Bestellen volgende werkdag in huis!
- Snelle Leveringen!
- uitgebreide betalings mogelijkheden!
- Technische ondersteuning bij de installatie!
- Speciale prijs voor grote hoeveelheden (Offerte) !
Vanaf €155,- €187,55
| Product Naam | Prijs | Aantal | Acties |
|---|
Categorieën: BARCODE SCANNER, Kiosk scanner
The FM50 Pike can easily fit into a variety of space-constrained areas, having a very tiny footprint. It can be integrated into the equipment and also used as a standalone scanner.
The combination of IR and light sensors built in the scanner, will help you to capture barcodes with high sensitivity. They can automatically adjust the brightness of supplementary lighting based on the light reflected from the barcode.
With IP54, FM50 Pike is prottected from dust and moisture. Also, it can withstand up to 1,5 meter drop, preventing the device from being easily damaged.
The FM50 Pike contains two scanning engines inside: 1D and 1D+2D for wider barcodes, that can be scanned with auto-sensing mode and in extraordinary speed. Product was specifically developed for reading very wide 1D barcodes and 2D barcodes used in utility bills, for instance in payment machines or ATM’s. Also, the scanner can be used in kiosks, loyalty programs or ticket validation and more.
| Performance | Image Sensor | CMOS+CCD | ||
| Pixels | 752*480 CMOS + 2500 CCD | |||
| Symbologies | 2D | PDF417, Data Matrix, QR Code, etc. | ||
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey, etc. | |||
| Resolution | ≥5mil | |||
| Scan Mode | Sense mode/Manual mode | |||
| Scan Angle | Pitch | ±55°@ 0°Roll and 0° Skew | ||
| Roll | ±360°@ 0°Pitch and 0° Skew | |||
| Skew | ±55°@ 0°Roll and 0° Pitch | |||
| Symbol Contrast | ≥20% | |||
| Interface | RS-232, USB | |||
| Physical | Dimensions (LxWxH) | 76 x 51 x 28mm | ||
| Weight | 100g | |||
| Notification | Beep, LED indicator | |||
| Current | Operating | 380mA | ||
| Standby | 180mA | |||
| Environmental | Operating Temperature | -20℃~70℃ | ||
| Storage Temperature | -40℃~70℃ | |||
| Humidity | 5%~95% (non-condensing) | |||
| ESD | ±14 KV (air discharge); ±8 KV (direct discharge) | |||
| Drop | 1.5m drops to concrete (for six sides, three drops per side) | |||
| Sealing | IP54 | |||
| Certification | FCC Part15 Class B，CE EMC Class B | |||
| Accessories | Cable (direct connection) | USB RS-232 | Used to connect the NLS-FM50 to a host device. Equipped with a power connector; used to connect the NLS- FM50 to a host device. | |
| Power Adaptor | Used to provide power for the NLS-FM50. Output:DC5V, 1.5A; Input:AC100~240V, 50~60Hz | |||
| Type Scanner | In-Counter |
|---|---|
| Manufacturer | Newland |
